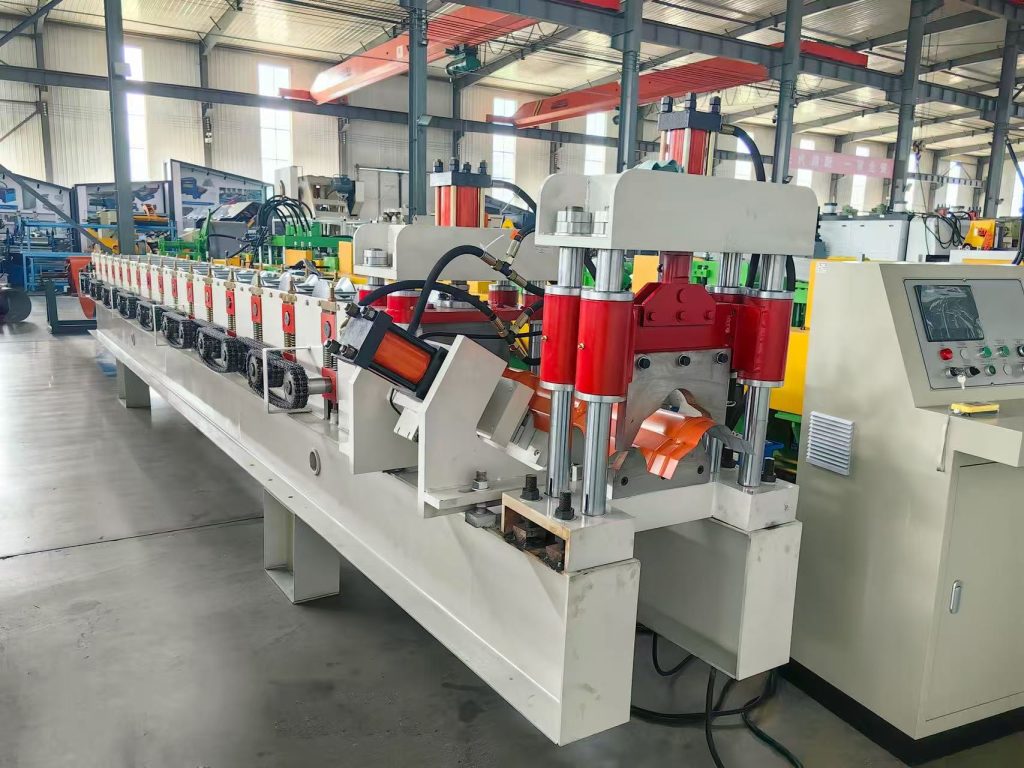

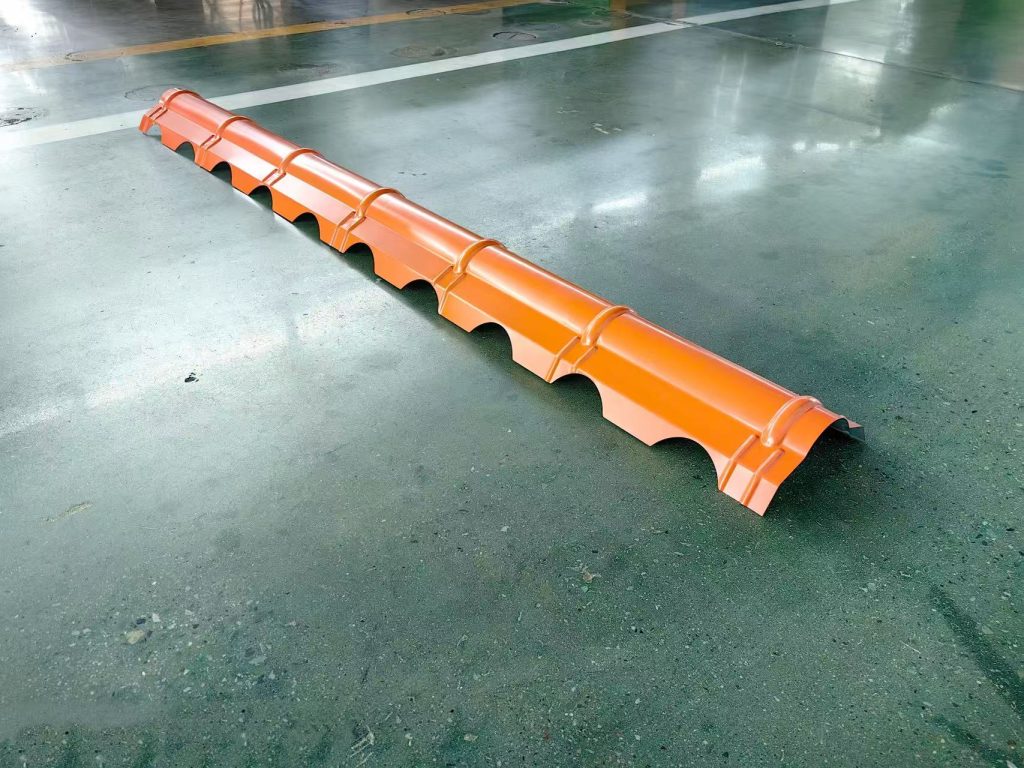

The High Quality Ridge Cap Roll Forming Machine specifically designed for producing ridge cover materials (ridge tiles) for building roofs. It processes raw materials such as metal sheets, cement, and resin through continuous rolling, molding, or extrusion processes to create specialized tile profiles that meet the requirements for roof waterproofing, decoration, and structural reinforcement. Its core function lies in:
1. Achieve standardized and large-scale production of ridge tiles to ensure dimensional accuracy and installation compatibility;

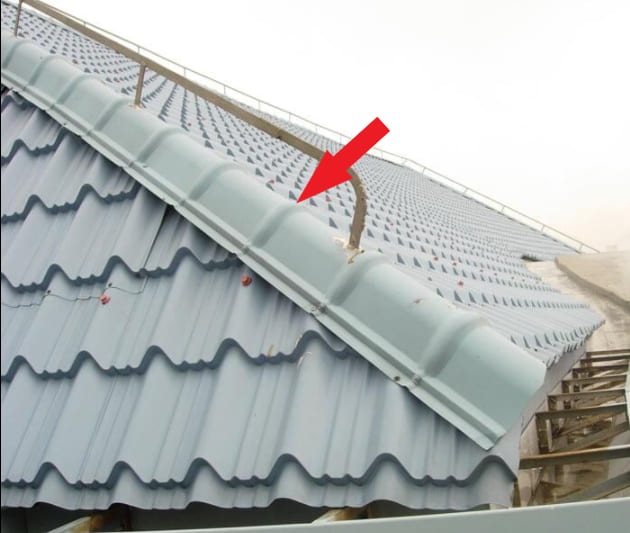

2. Improve roof sealing performance to prevent rainwater leakage and extend the building’s service life;
3. Adaptable to various architectural styles, offering a diverse selection of tile types to enhance roof decoration effects.
Application scenarios and industry value
1.Main application areas
• Industrial buildings: Roof waterproofing covering for factory buildings, warehouses, and steel structure workshops;
• Civil buildings: roof decoration and waterproofing of rural self built houses, villas, and residential communities;
• Public buildings: Roof design of large buildings such as sports halls, exhibition halls, toll booths, etc;
• Restoration of Ancient Buildings: Reproduction and production of roof tiles for antique style buildings, adapted to traditional roof structures.
2.Industry value
• Replacing traditional handmade production, significantly improving production efficiency and reducing labor costs;
• Standardized production ensures the quality of roof engineering and reduces leakage hazards;
• Diversified tile types and material selection to meet the functional and aesthetic needs of different buildings;
• Promote the development of green buildings, such as recyclable resin tiles and metal tiles, which comply with environmental policies.
Product Attributes：
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.3-0.8mm
|
||
|

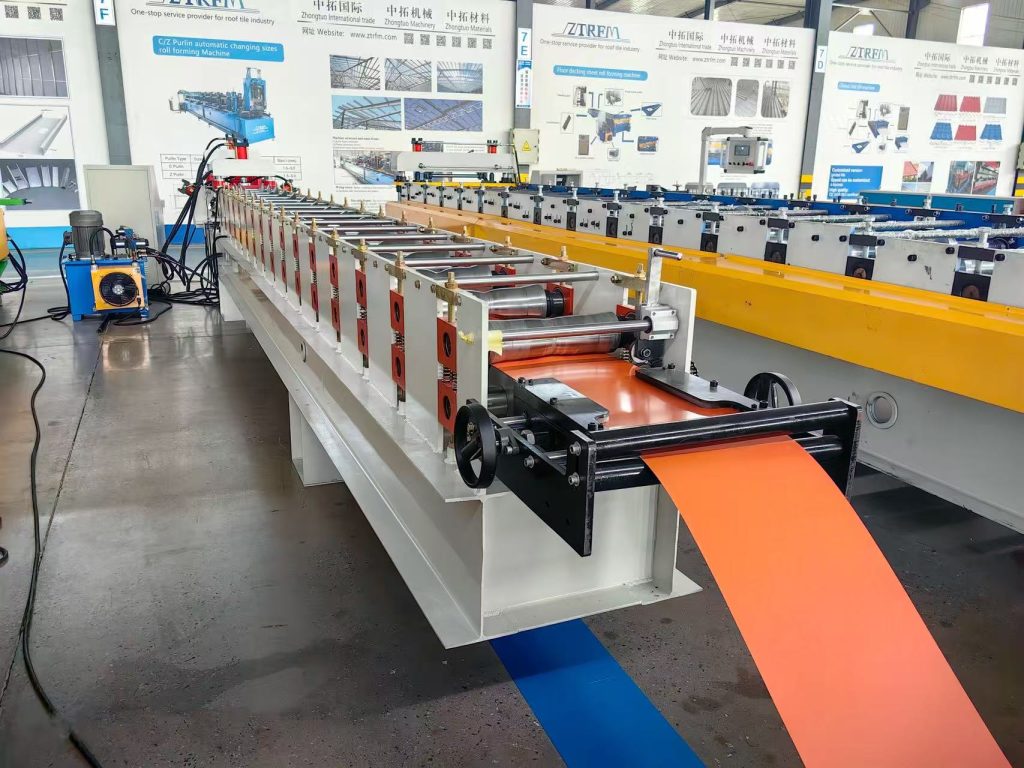

2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|

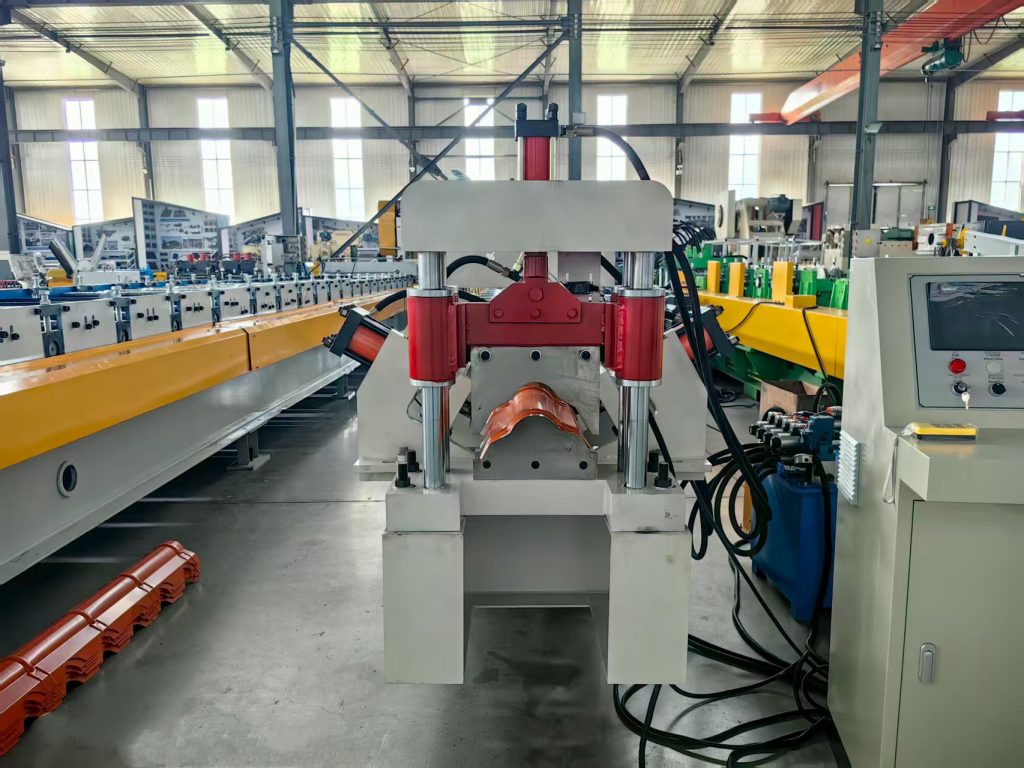

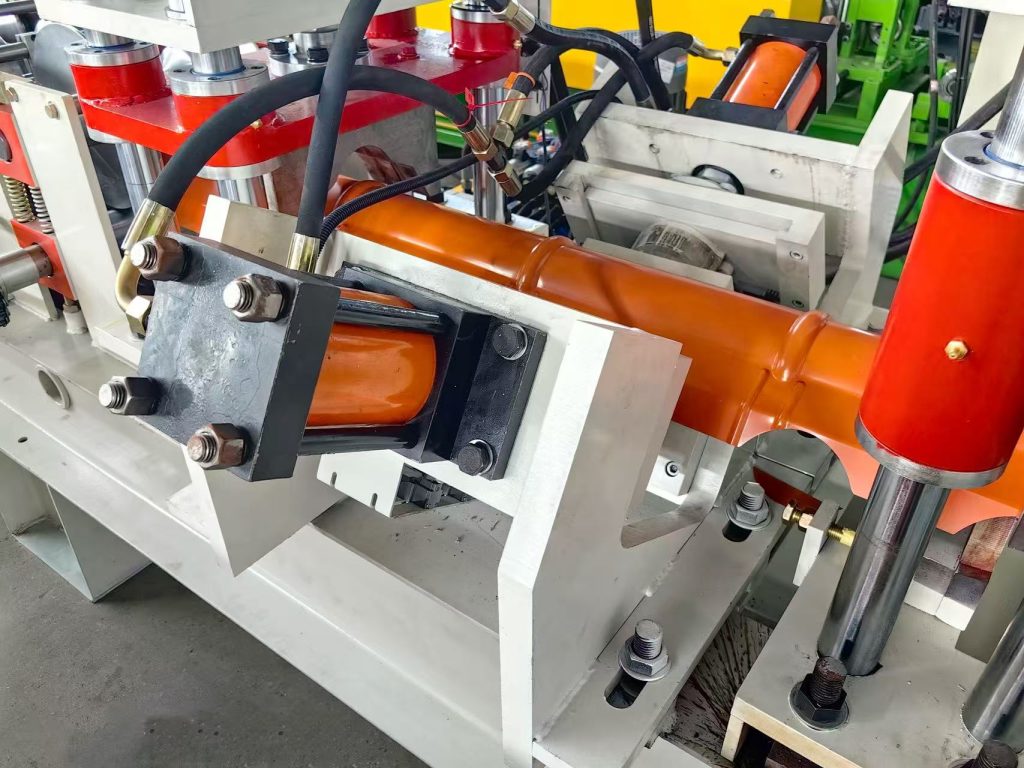

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-80m/min
|
Provide customized
|
||
