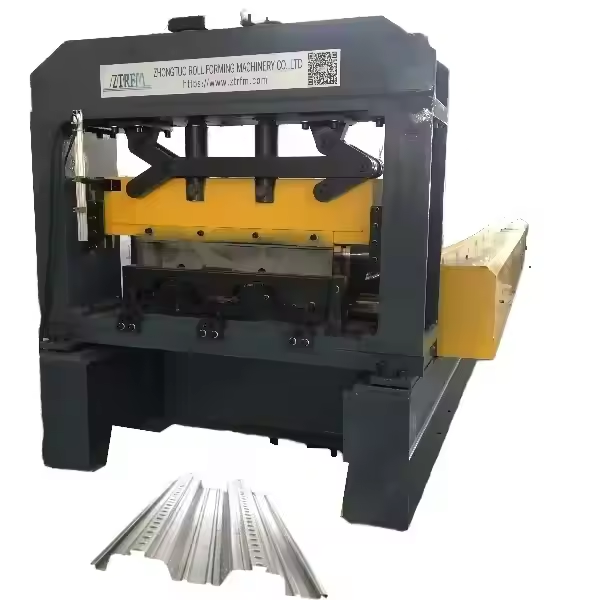

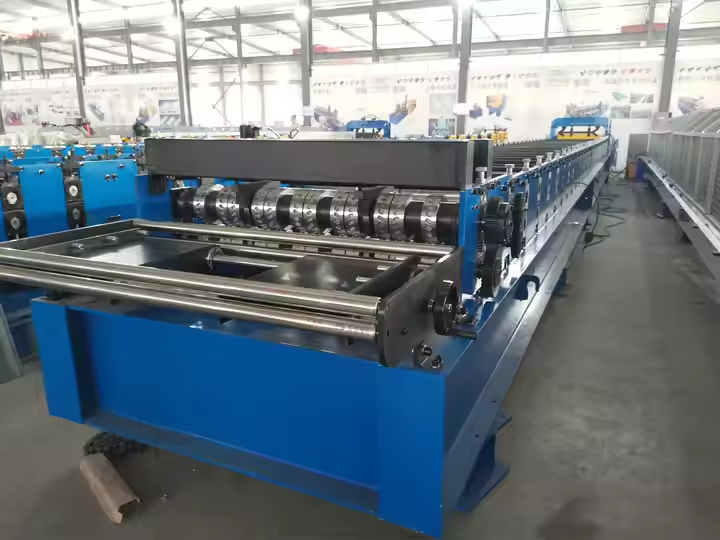

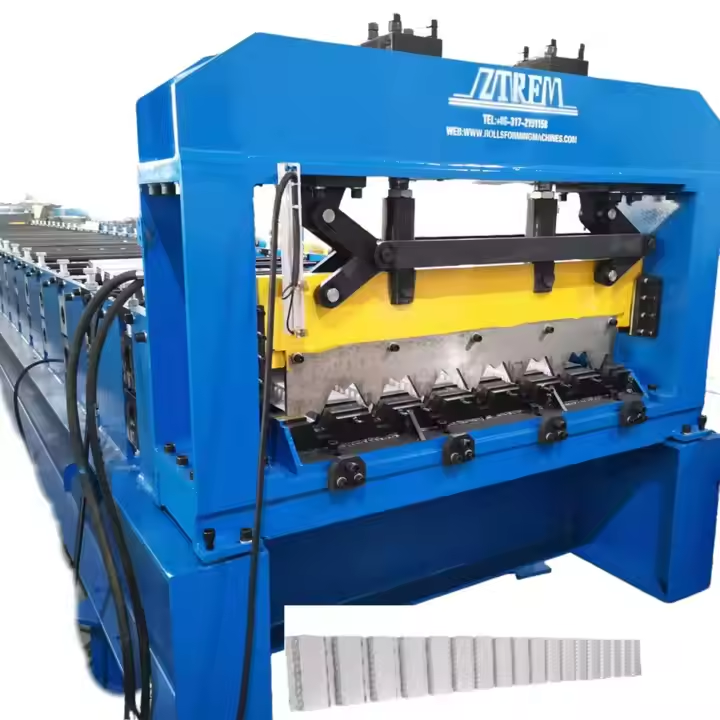

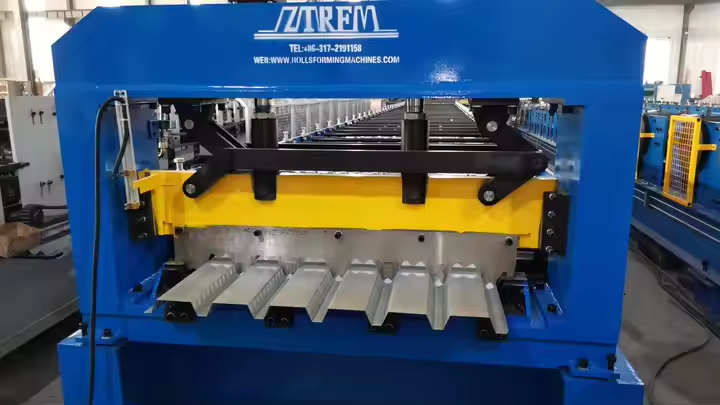

Introduction to Metal Steel Floor Deck Roll Forming Machine
The floor deck roll forming machine serves as specialized metal processing equipment for manufacturing floor decks in the construction industry. These floor decks, vital components for supporting floor loads, are commonly positioned between the beams of buildings.
Working Principle
It operates by leveraging mechanical force to bend and shape metal coils at ambient temperature, thereby fabricating floor decks that align with specified design criteria.
Main parameters
| Material thickness | 0.8-1.2 mm | |||
| Voltage | 380 v 50 hz 3 phase or as request | |||
| Frame | 400 H beam steel welded | |||
| Roller fixer | Middle plate (thickness 20mm) | |||
| Drive mode | chain transmission(gearbox type optional) | |||
| Material of rollers | Gcr15 quenching treat HRC58-60 | |||
| Material of shafts | 45# steel precision-machined | |||
| Diameter of shafts | φ 95 mm | |||
| Number of rollers | about 30 rollers | |||
| Drive motor power | 15 kw | |||
| Forming speed | 0-25 m per minute(customized) | |||
Advantages of floor deck roll forming machine
– Efficient production: Ambient-temperature forming obviates the need for preheating and thermal insulation, significantly reducing production cycle times.
– Energy-efficient operation: Compared to thermal forming methods, this technology consumes less energy and minimizes environmental impact.
– Consistent quality: Through precise control systems, the dimensions and geometry of each floor deck are guaranteed to meet design specifications.
– Wide adaptability: Capable of producing a diverse range of specifications and models, it caters to the structural requirements of various building designs.
