Here is the working video of this machine for everyone to watch:
Product Attributes ：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|

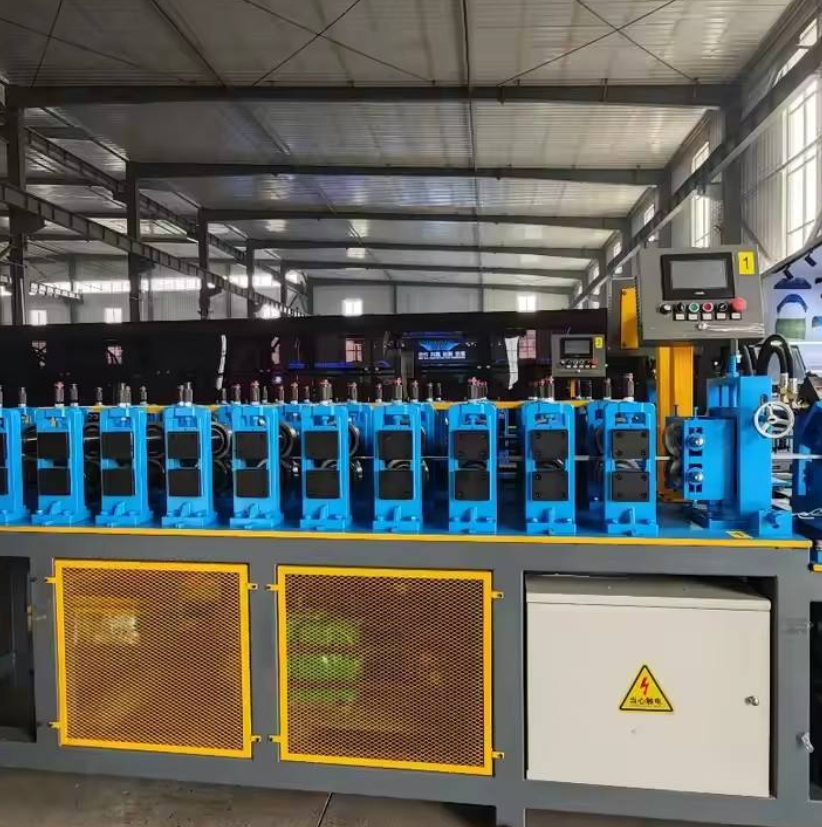

Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 6T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-50m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Product Description：

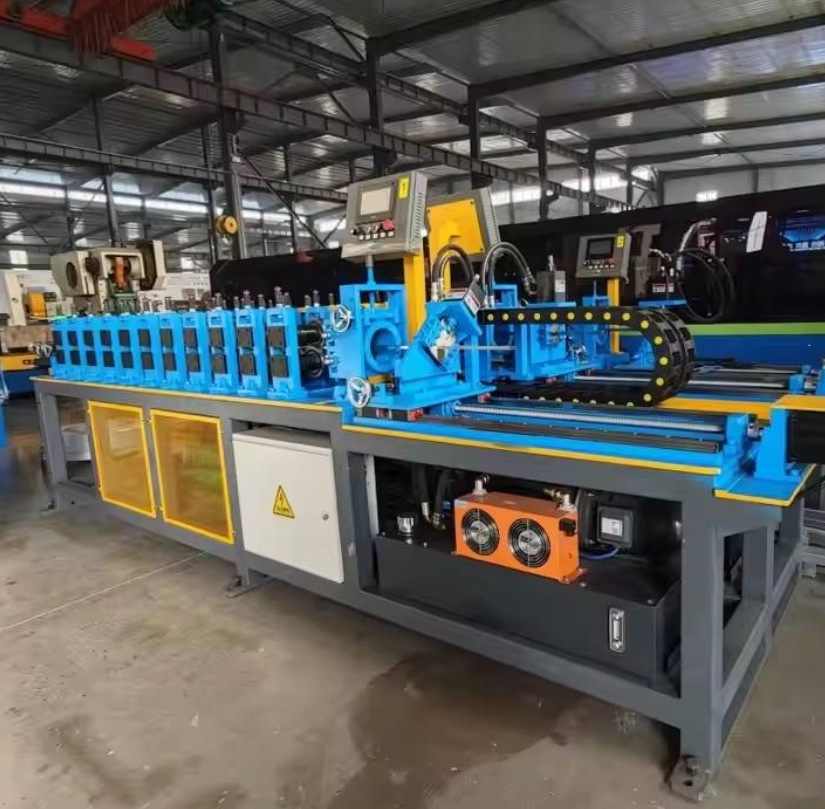

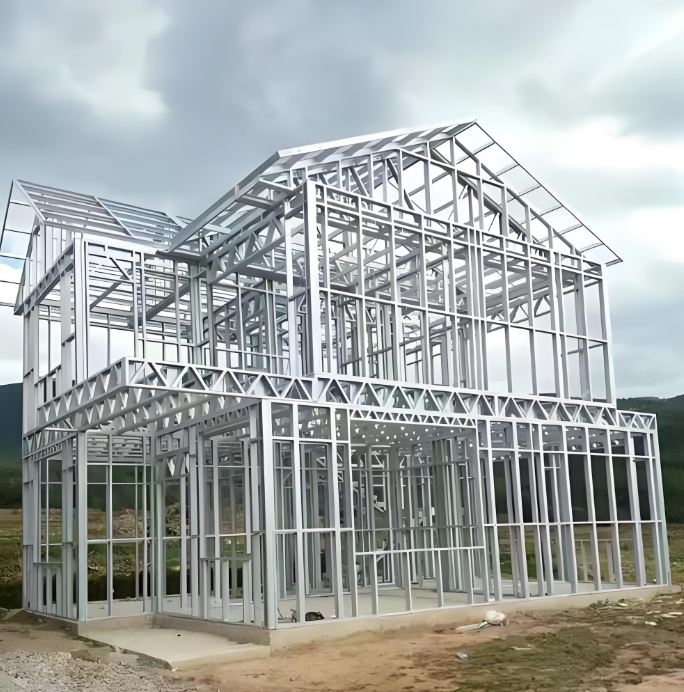

The double line stud and track roll forming machine is mainly used for producing light steel keels, which process metal sheets into double line stud and track structures through multiple rolling processes. This type of equipment usually has the characteristics of high automation, high production efficiency, and stable product quality. Widely used in the field of architectural decoration, especially in suspended ceilings, partition walls and other projects.In the wave of architectural industrialization, light steel keel, as the “skeleton” of modern buildings, its production efficiency directly determines the progress of the project. The traditional single line keel machine has a daily production capacity of less than 5 tons, while the dual unit keel machine improves efficiency through parallel collaboration and intelligent control, becoming the core equipment under the EPC engineering general contracting mode.
Machine features:
1.Efficient production:
The double line stud and track roll forming machine adopts an automated production line, which can quickly complete the processing from raw materials to finished products, with high production efficiency.
2.Stable product quality:
Through precise rolling process, the dimensional accuracy and strength of the keel are ensured, and the product quality is stable.
3.High structural strength:
The double line stud and track structure has higher strength and stability compared to single-layer keels, and can better withstand loads.
4.Good sound and heat insulation performance:
The double line stud and track structure can be filled with sound and heat insulation materials in the middle to further enhance its sound and heat insulation performance.
5.Strong adaptability:
The specifications and dimensions of the keel can be adjusted according to different building needs.
Main purpose:
- Ceiling engineering:
Double line stud and track is commonly used in complex ceiling structures, such as corner and large-span ceilings, which can effectively prevent ceiling cracking and deformation. - Partition wall engineering:
In partition wall construction, double line stud and track can provide higher strength and stability, while being combined with sound insulation materials to enhance the sound insulation performance of the partition wall. - Special building structures:
In some buildings with high requirements for structural strength and sound insulation performance, such as computer rooms, clean workshops, etc., double line stud and tracks are widely used.
