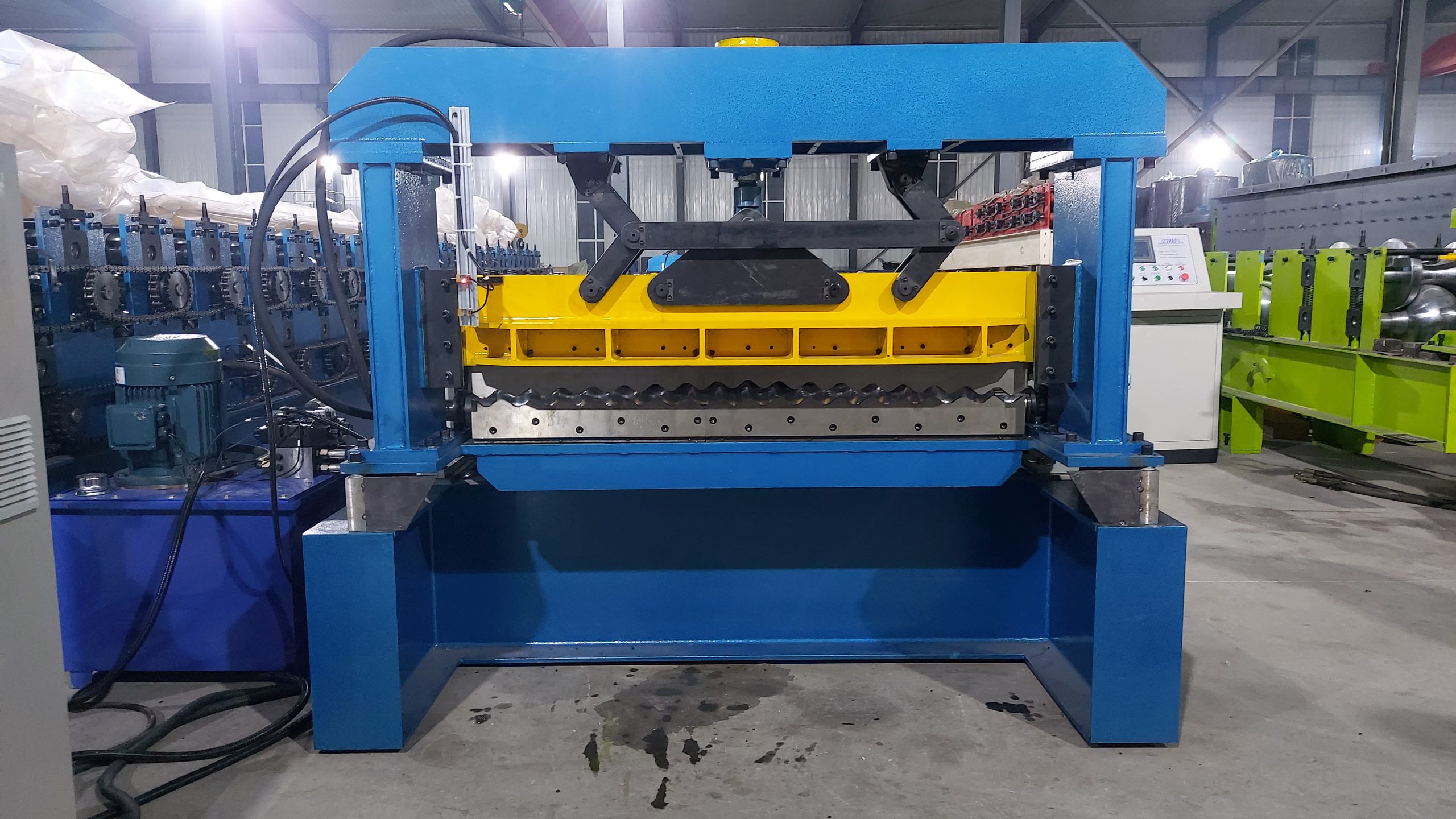

Corrugated Sheet Roofing Sheet Roll Forming Machine

Metal roofing sheet corrugation mahcine roll forming machine
Metal roofing sheet corrugation mahcine roll forming machine

Technical specifications:

Item

Name

Specifications

1

Material

1.Raw material:PPGI,Galvanized steel,Aluminum

2.Raw material thickness:0.14-0.8mm

3.Yield strength:350Mpa,550Mpa

4.Coil width:914/1000/1200/1200/1320/1450mm,as request

2

Main roll former

1.Roller station:24 station(according to profile drawing)

2.Roller material:Cr 12 with quenched treatment

3.Shaft diameter:80mm

4.Shaft material:45# steel with tempered

5.Transmission:by chain

6.Motor power:5.5kw

7.Machine frame:350H steel welded

8.Cutting type:Hydraulic cutting

9.Cutting blade material:Cr12 with quenched treatment

10.Cutting tolerance:+/-1mm

3

Electric brand

1.Control system:PLC

2.PLC brand:Siemens

3.Touch screen brand:Siemens

4.Button brand:Schneider

5.Encoder brand:Omron

6.Low voltage apparatus:Schneider

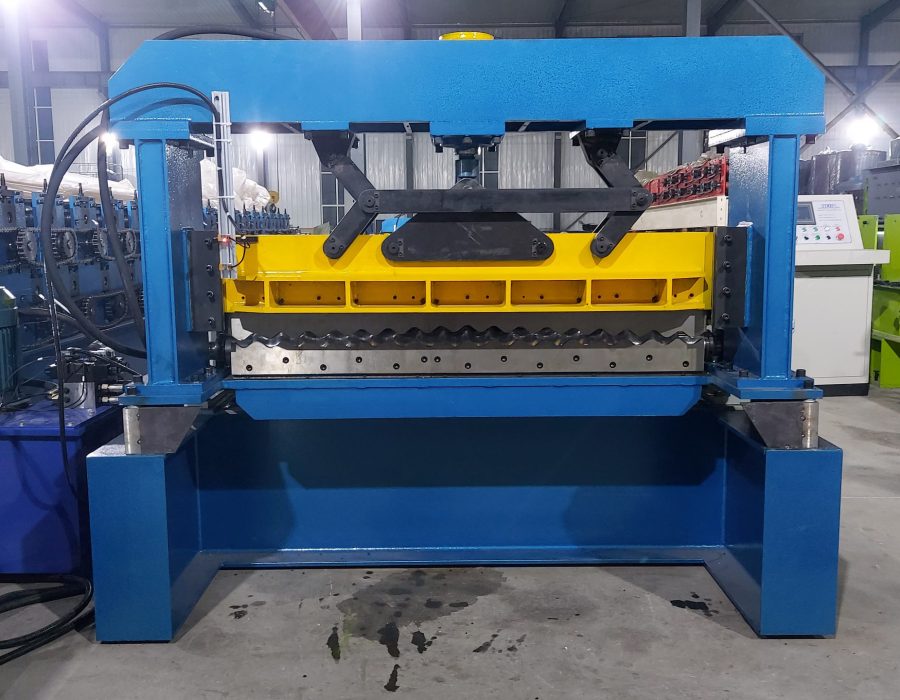

More pictures of the machine:

Uncoiler

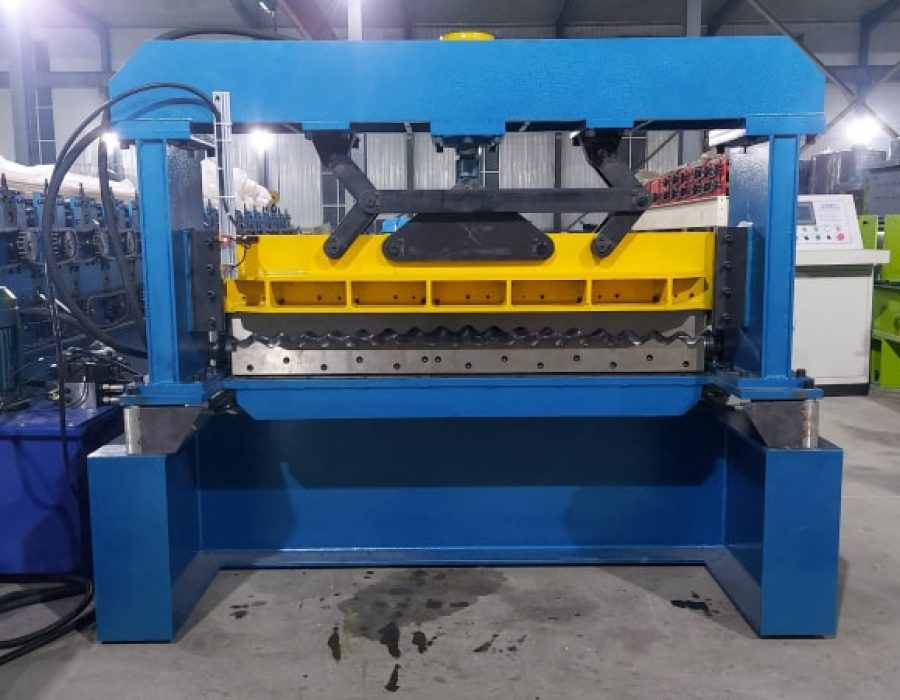

Corrugation sheet machine (6)
