Corrugated Roofing Sheet Making Machine
In the construction industry, roofing tile equipment is an indispensable tool, among which the corrugated roofing sheet making machine plays a crucial role in the manufacturing process of roof tiles. The ZTRFM corrugated roofing sheet making machine is specifically designed for producing and installing arc-shaped roof tiles, integrating advanced technology to meet diverse construction requirements.
Features and Advantages of ZTRFM Corrugated Roofing Sheet Making Machine
1. Precision Cutting and Forming Capability
The equipment is equipped with high-precision cutting and forming systems, enabling it to manufacture roof tiles into various arc shapes. This flexibility adapts to different roof structures—such as curved, domed, or arched roofs—ensuring seamless integration with architectural designs. The forming process maintains strict dimensional accuracy, meeting the technical standards of modern construction projects.
2. Enhanced Productivity and Quality Assurance
By automating the production process, the corrugated roofing sheet making machine significantly improves production efficiency while reducing manual labor input. Its fully automated operation minimizes human error, ensuring consistent quality of each roof tile. The machine’s stability guarantees uniform thickness, smooth surfaces, and reliable structural strength, which are essential for roof durability and waterproofing.
3. Advanced Mechanical Design for Longevity

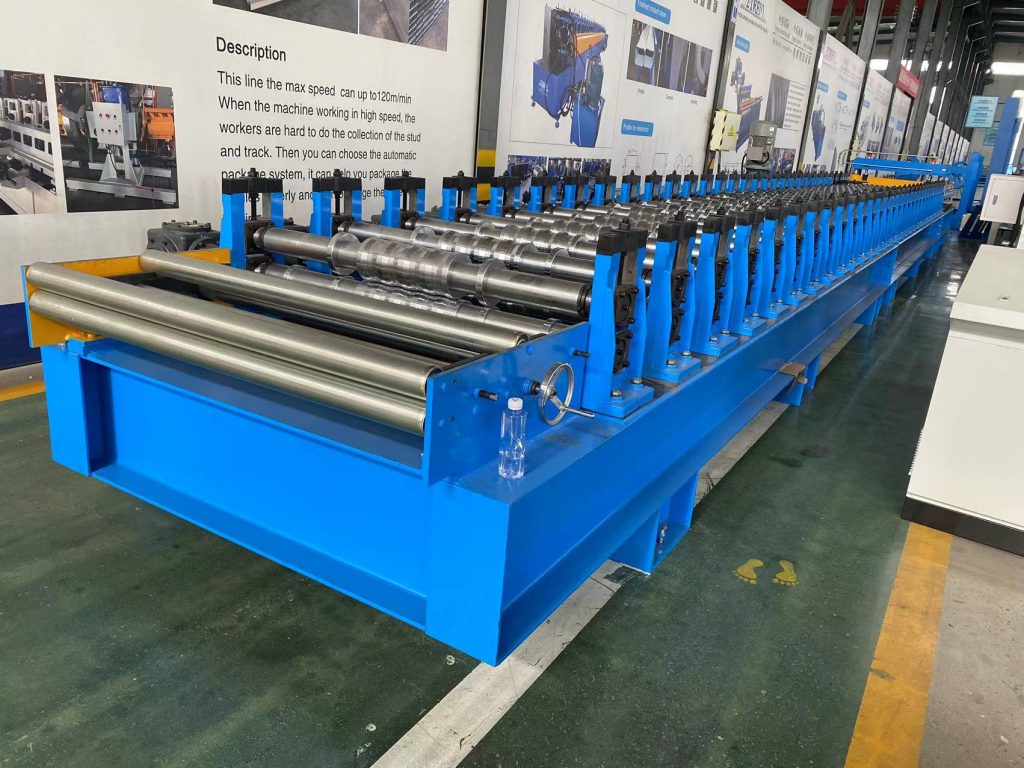

– Roller System: The forming rollers of the machine are made of 45# steel with chrome plating treatment. This material combination enhances surface smoothness, hardness, and wear resistance, effectively preventing corrosion and extending the equipment’s service life. Additionally, the chrome-plated surface avoids abrasion to the production materials, preserving the aesthetic and structural integrity of the roof tiles.
Key attributes
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | As your requirement | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | 350 H steel | |||
| Drive | gearbox transmission(as your requirement) | |||
| Dimension(L*W*H) | 9500*1600*1600(customize) | |||
| Weight | 10T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW | ||

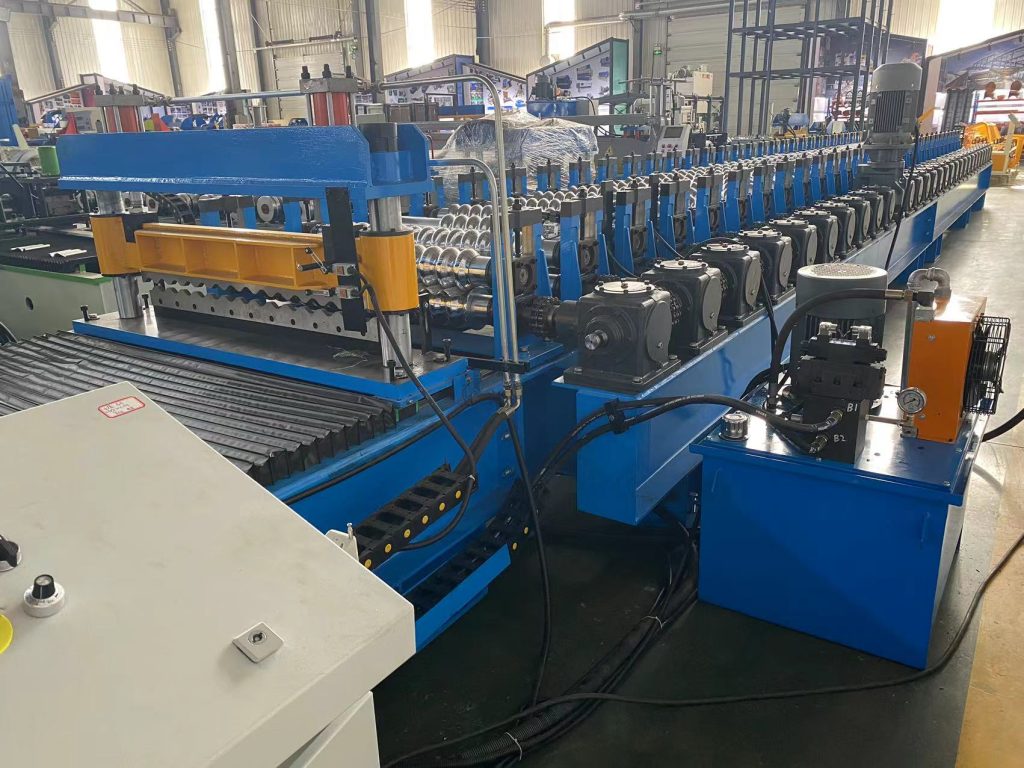

| Hydraulic system power | 5.5KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||

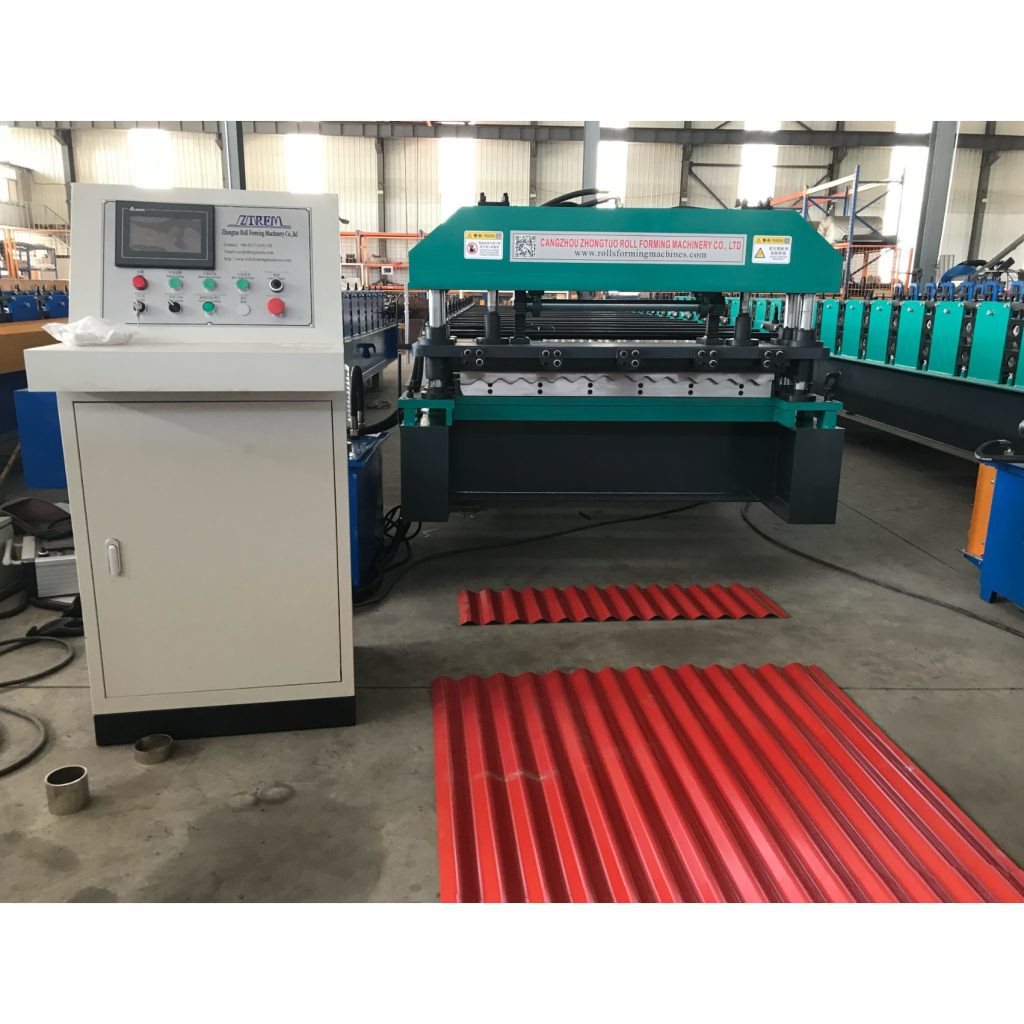

| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 0-15/min | The speed depends on the shape of the tile and the thickness of the material. | ||

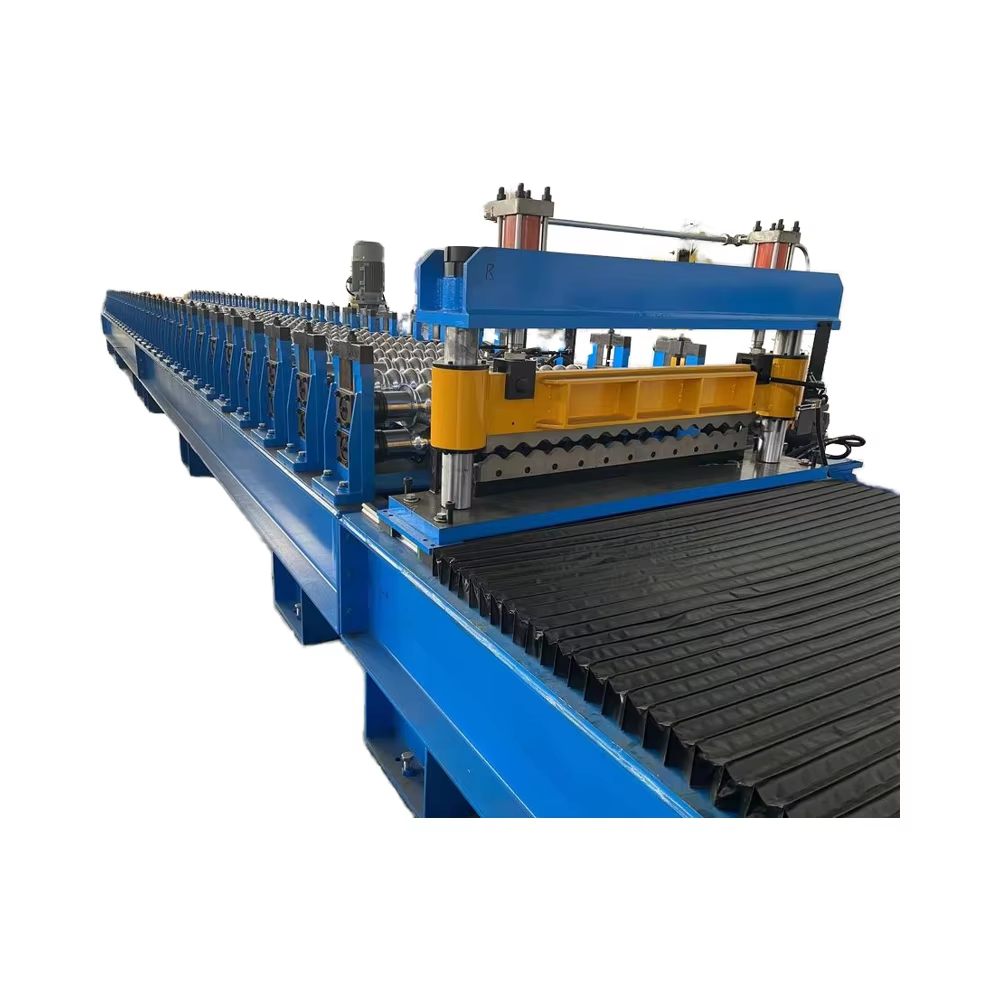

– Cutting System: Controlled by a PLC (Programmable Logic Controller) system, the cutting unit ensures precise length setting and dimensional accuracy. The automated control reduces operational errors, simplifies the adjustment process, and enables quick parameter modification to meet different production requirements.
Technical Specifications and Operational Efficiency
As a fully automated roofing tile forming equipment, ZTRFM corrugated roofing sheet making machine integrates intelligent control and mechanical precision. Its user-friendly interface allows operators to set parameters easily, while the self-diagnostic system monitors real-time performance to prevent failures. The combination of high-strength materials, precise control systems, and efficient production processes makes it an ideal solution for large-scale roofing tile manufacturing in modern construction projects.
