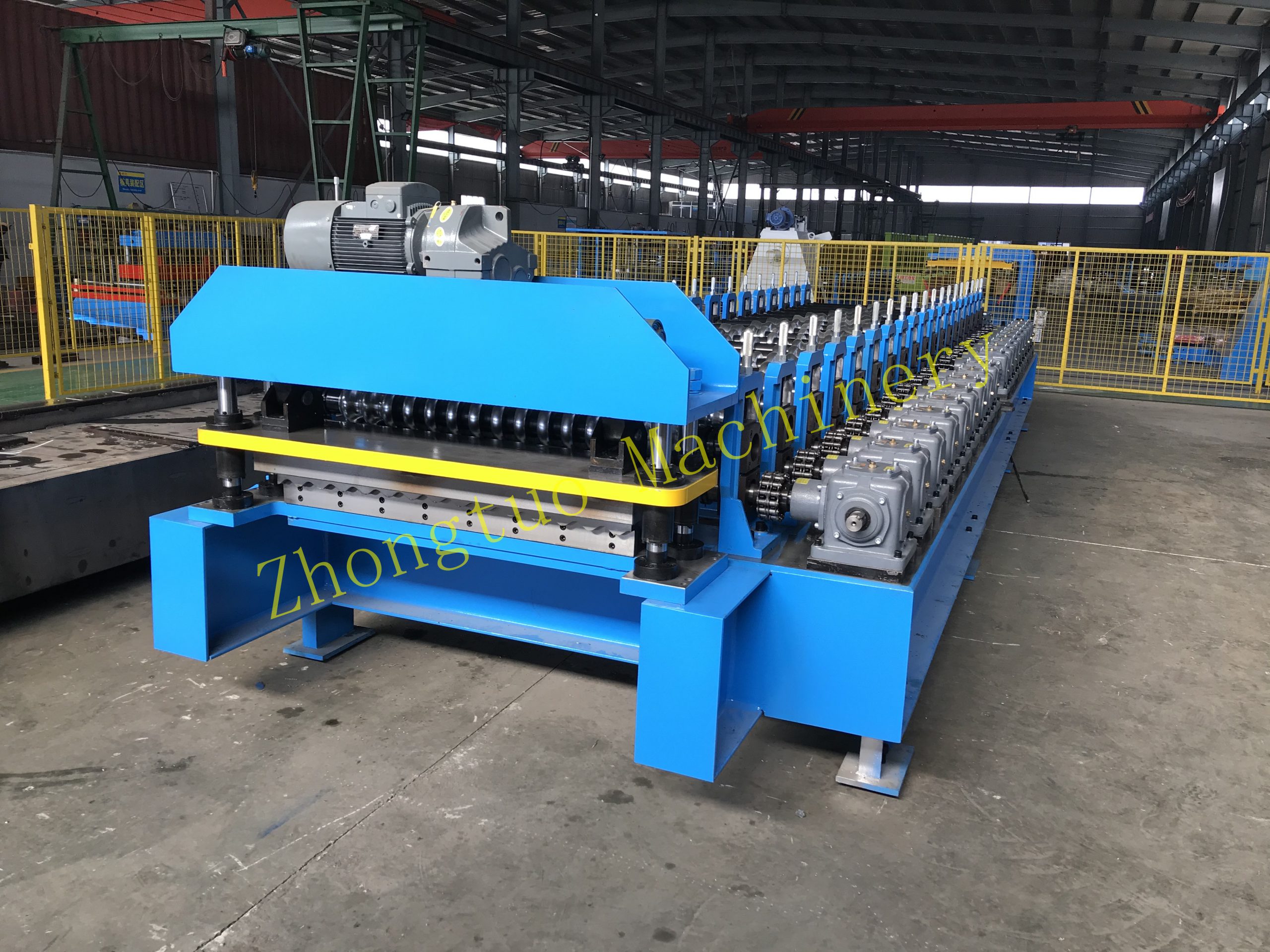

High speed corrugated sheet roll forming mahcine

Advantages of the machine:

1.High speed:about 30m-35m/min.The speed is optional from 15m/min to 40m/min.

2.Electric cutter:the machine works high efficient

3.Mode of transmission:gearbox,the machine  works more steady and fast

4.Structure:Cast iron molding frame,it can increase the precision of the machine and increase the life-time of the machine.

Introduction of the whole line:






Manual/hydraulic Decoiler with loading car

1 set


Main roll former

1 set


Control system

1 set


Hydraulic system

1 set


Product table/auto stacker

1 set

2.Layout of the machine:

3.Technical specifications:

Part 1:Hydraulic decoiler with loading car

1.Capacity:5 tons

2.Coil width:1250mm

3.Coil inner diameter:450-550mm

4.Main motor power:5.5 kw

5.Hydraulic power:5.5 kw

6.Add press arm to keep the coil from loosing.

7.Add pneumatic braking system

8.Add the speed sensor to keep the decoiler’s speed match with the roll former

Part 2: Roll former

1.Roller station:18 station(according to profile drawing)

2.Roller material:45# steel with quenched treatment

3.Shaft diameter:80mm

4.Shaft material:45# steel with tempered

5.Transmission:by chain

6.Motor power:7.5kw*2sets

7.Machine frame:350H steel welded

8.Cutting type:Hydraulic cutting

9.Cutting blade material:Cr12 with quenched treatment

10.Cutting tolerance:+/-1mm

Part 3:

1.Language:Chinese,English,Spanish,Arabic ect

2.Control system:PLC

2.PLC brand:Siemens

3.Touch screen brand:Siemens

4.Button brand:Schneider

5.Encoder brand:Omron

6.Low voltage apparatus:Schneider

Part 4:Hydraulic system


2.With fan cooling device


4.Pressure:16 Mpa

5.Oil:46# hydraulic oil

Part 5:Auto stacker/manual receive table

1.Length:3 m-12m optional



We are the professional manufacturer of this kind of machines,and we have advanced technical team who can design the machine as your reqest.Welcome to contact us directly if you are interested in it.
