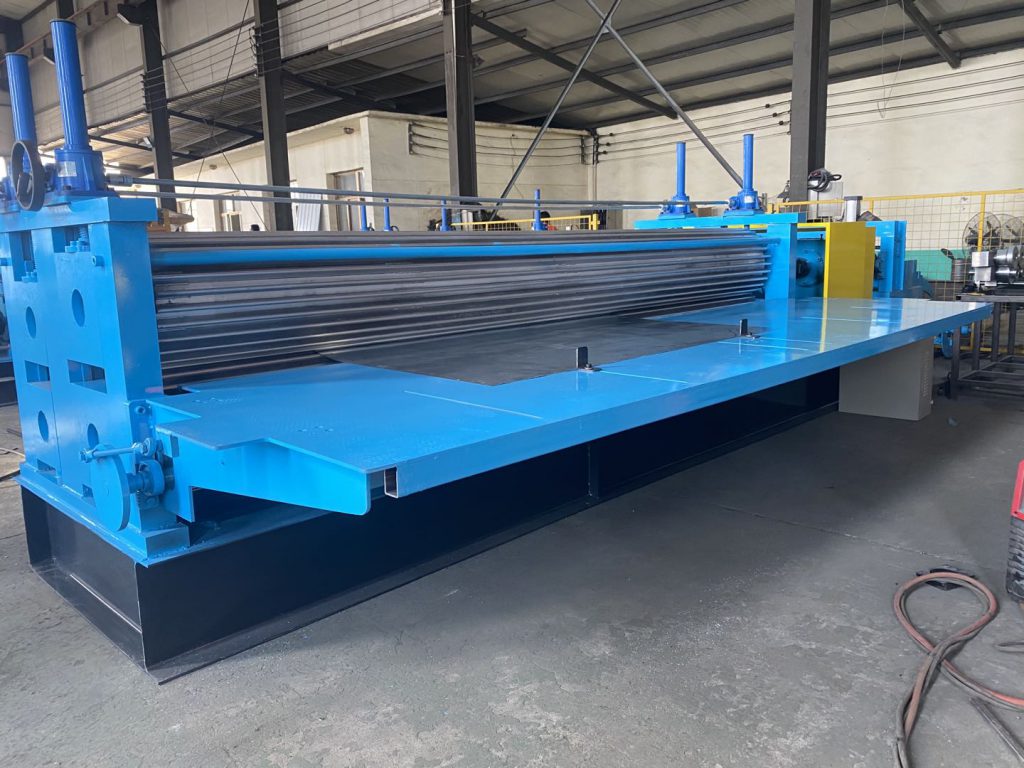

Description of machine:
No 1: The barrel type corrugation machine is only used to roll thin sheet from 0.15mm to 0.4mm and length can be 14 feet(4267mm) or customized
No 2:The material width can be 762mm(2.5feet),914mm(3 feet),1000mm and 1250mm
No 3:The material can be pre-painted steel,galvanized steel,galvalume and pre-painted galvanlume etc ,(G350Mpa to G550Mpa)
No 4:Finished product width:665mm for 762mm input
800mm for 914mm input
875mm for 1000mm input
Pitch width:76.2mm(+/-2mm)
Depth:18mm(+/-1.5mm)
No 5:The uppper and bottom rolls for corrugation can be adjustable
No 6: We exported to this type machine to some South Eastern countries like Indonesia,Sri Lanka,Philippines and Africa ect
Technical specifications of the machine:
| No | Name | Description |
| 1 | Feeding width | ≤1250mm(as request) |
| 2 | Length of the sheet | 2000-5000mm(as customer’s request) |
| 3 | Raw material | GI,PPGI,GL,PPGL |
| 4 | Roller station | 2 sets (4 pieces) |
| 5 | Roller diameter | 450mm |
| 6 | Speed | 2-3 seconds per piece |
| 7 | Weight | About 8T |
| 8 | Motor power | 15 kw |
| 9 | Voltage | 380V,50HZ,3PH or as customer’s request |
| 10 | The feeding platform width | 1m |
| 11 | Wave height | Can be adjusted in a limited range |
More pictures of the machine:
